General Sizing Notes
For Nozzle diameter add .250” to the diameter of the parts to be positioned in the nozzle. Example: For material diameter .100” the nozzle diameter will be .350”
For nozzle width, this is based on the process performed. Example: for an overlap joint the nozzle width will equal the overlap length. For laminations we recommend maximum width (.500”)
Sizing Notes
Width (.25” Min .625 max .25 min) and diameter (.375 Min. 1.0” max .) machined to customer specifications
$4,015.00

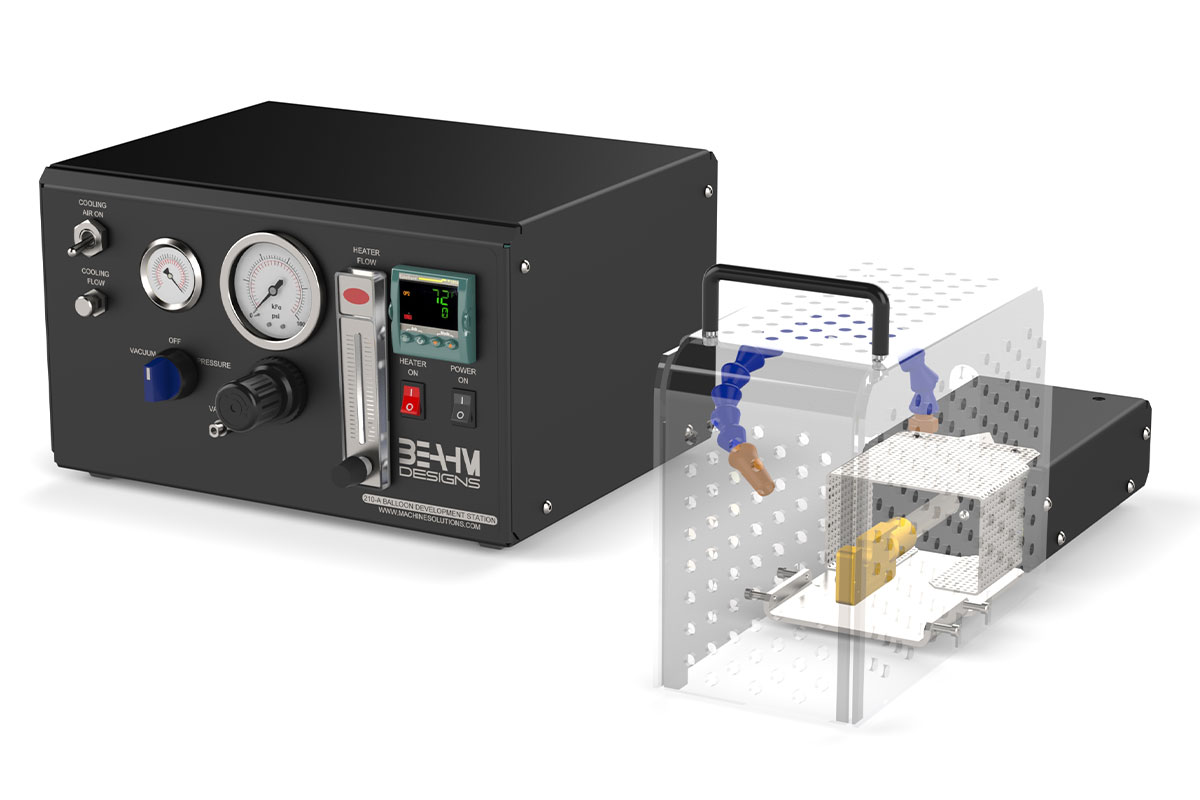

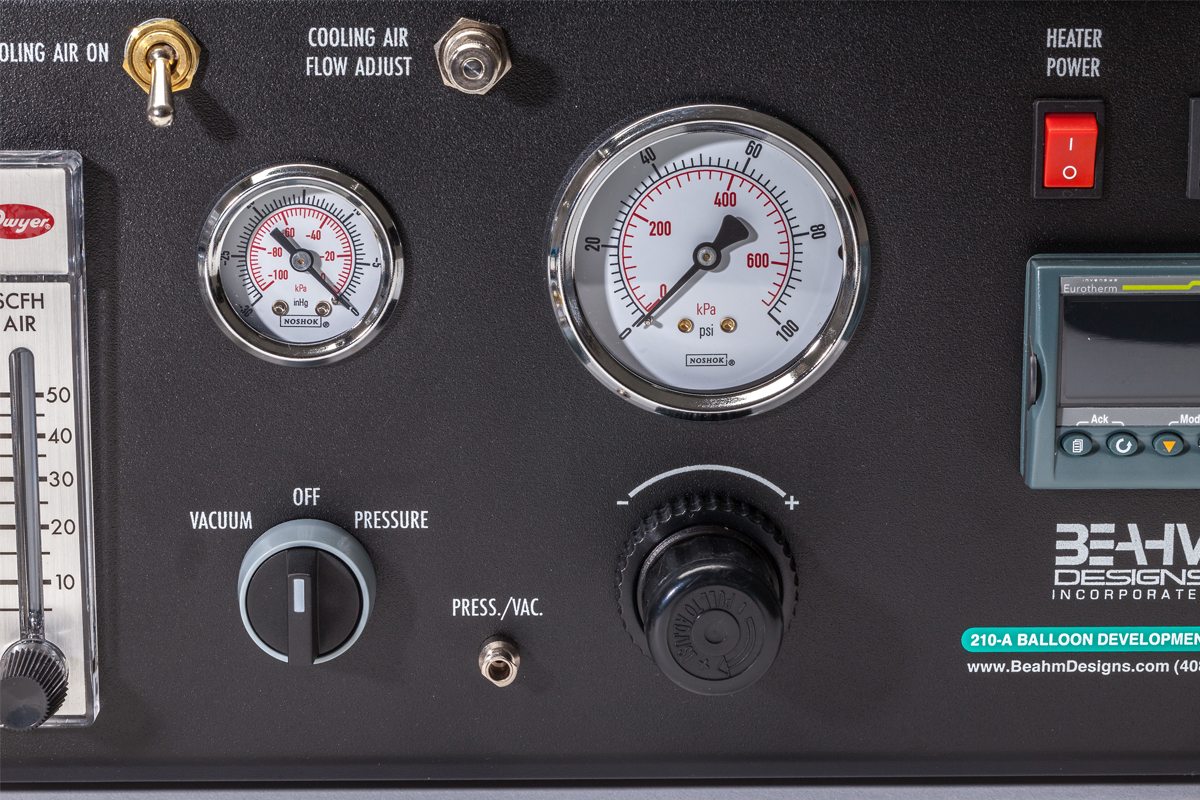

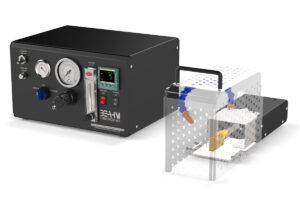

This catheter balloon development system precisely heats and delivers focused process air through a variety of machined to order thermal nozzles. This system features air pressure and vacuum for prototype balloon development and balloon blowing. Temperature is stabilized +/- 2 deg f. .and each machine incorporates a self-tuning temperature controller with thermocouple feedback and SCR power control to provide highly stable set-point control.
* Typical lead-time is 1-3 weeks and will be confirmed at your time of order
* Additionally, the remote heater enclosure affords maximum bench top space and can be automated for horizontal traversing applications.
* Customers who desire equipment to be delivered as CE compliance should select the Polycarbonate Guard accessory
| Weight | 9.0718474 lbs |
|---|
